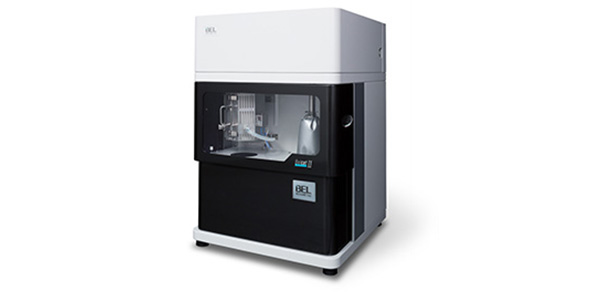

BELCAT II Catalyst Analyzer
The high reputation for the quality and the user-friendliness of BELCAT series was taken over by BELCAT Ⅱ. BELCAT Ⅱ will be the strong tool for the catalyst evaluation. BEL's new fully-automated catalyst analyzer, BELCAT Ⅱ enables comprehensive catalyst study by using the techniques:
Pulse chemisorption
Temperature programmed desorption (TPD)
Temperature programmed reduction (TPR)
Temperature programmed oxidation (TPO)
Temperature programmed reaction (TPReaction)
BET single point measurement
- Affordable price.
- Small foot print.
- Precise gas control by three high performance mass flow controllers.
- Precise automatic gas injection system for calibration.
- The pulse loop with temperature/pressure sensor enables the highly reproducible result.
- A variety of options to fulfill the customers' demand.
- With the standard gas mixing equipment, mixed gases (H2/Ar, O2/He, etc...) are not necessary.
| Measurement principle | Dynamic flow method |
| Detector | Thermal conductivity detector |
| Measurement/pretreatment port | 1 |
| Gas port | |
| Carrier | 3 |
| Pretreatment/pulse | 8 |
| Mix gas | 8 |
| Vapor dosing | Option |
| Physical | W600 X D700 X H705mm 80kg |
