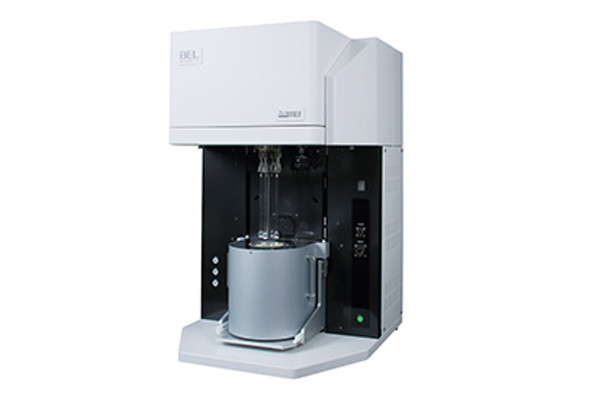

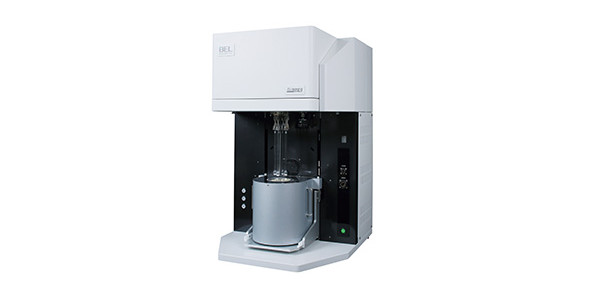

BELSORP-max II
This instrument is BEL's high-end volumetric gas adsorption instrument. To obtain useful information about micropore, it is important to measure adsorption isotherm from low relative pressure with accuracy.
- The highest throughput instrument with simultaneous measurement of up to 4 samples.
- New advanced function "GDO (Gas Dosing Optimization)". The best suitable measurement conditions are automatically set using saved customer's adsorption isotherm data.
- An advanced system of direct evacuating and intelligent valve control reduces the measurement time significantly.
- High precision vapor adsorption measurement under the strict temperature control.
- High precision measurement by Advanced Free Space Measurement (AFSMTM)
- LN2 automatic supplier and the dedicated heater enable fully automatic seamless process control from pretreatment to measurement.
- The advanced GCMC method is featured, which enables to perform more precise and higher resolution PSD analysis considering the interaction of actual material surface and adsorbate molecules than the conventional NLDFT (approx. calculation) method.
- The measurement process status and the results can be checked from new remote monitoring function using e-mail system
| Measurement principle | Volumetric method + AFSMTM |
| Adsorption gas/vapor | N2, Ar, Kr, CO2, H2, O2, CH4, NH3, other non-corrosive gas H2O, MeOH,EtOH, C6H6, other non-corrosive vapor |
| Analysis ports | 4 ports + 1 dedicated P0 port |
| Measurement range | Specific surface area:0.01m2/g or more(N2)、0.0005m2/g or more（Kr） Pore size distribution（Diameter)：0.35～500nm |
| Pressure transducer※ | 133kPa(1000Torr)×6 units 1.33kPa(10Torr)×4 units 0.0133kPa(0.1Torr)×3 units |
| Thermostatic air oven | 50℃ |
| Gas port | 2 (Available to add up to 12 ports) |
| Vapor port | 1 |
| Vacuum pump | Rotary vacuum pump (or dry diaphragm pump)＋Turbo molecular pump |
| Pretreatment heater (Option) | 50～550℃ (4ports) |
| Full Automatic measurement heater※ | 50～450℃ (3ports) |
| Water bath (Option) | 5～70℃ (4ports) |
| Dimensions, weight | 650(W)×1020(H)×680(D) 120Kg |
| Utility | Gas He,Adsorption gas:0.1MPa 1/8” Swagelok connection Valve driving gas:0.5-0.6MPa 1/4” one-touch connection Power AC110/220V : 1500W (Main unit including rotary pump) AC110/220V : 900W (Heater) |
