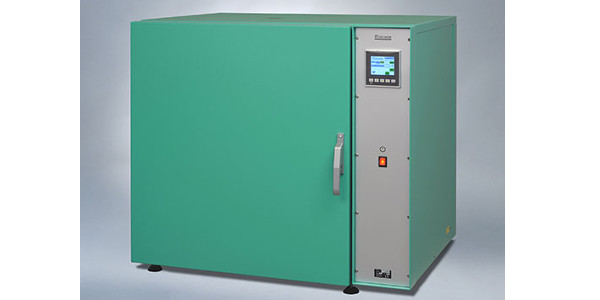

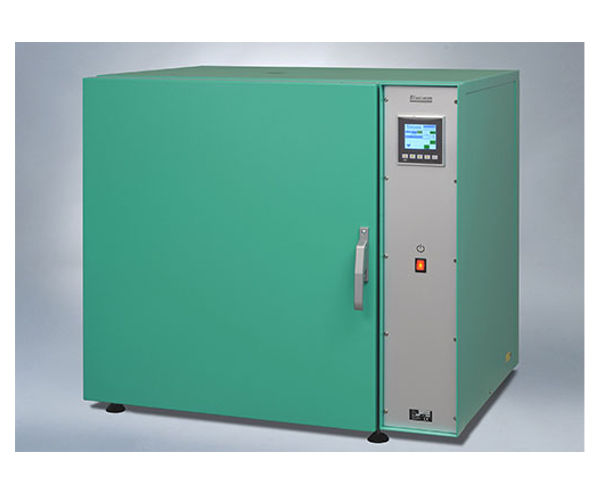

EB 10-II
The EB 10-II cabinet ageing oven from ELASTOCON is the ideal instrument to measure ageing of plastics and rubber materials under controlled environment. It has a low air speed and factory set throttle to give a fixed air exchange of 7 to 14 changes per hourwhich meets the requirements in ISO 188 method A. The oven comes in two sizes, either 60 or 120 litres useful volume.
- Low air speed (< 0,001 m/s)
- Fixed set air exchange rate of 7 or 14 changes per hour
- Temperature variation in time ± 0,25 °C
- Temperature variation in space ± 0,5 %
- Temperature indicator with sensor in the inner chamber (PLC)
- Temperature controller with 0,1 °C set point (PLC)
- Adjustable upper and lower temperature limits with alarm (PLC)
- Fixed over temperature fuse
- Controlled from a micro PLC, with a colour touch screen
- Test names can be given in the PLC
- Improved insulation reduces energy consumption, environmental impact and cost
- Cooling channels in the casing for low surface temperature
- Indication of power failure (PLC)
- Run-time meter (PLC)
- Countdown timer for each cell (PLC)
- Alarm history
- Door with two point locking
- Easy shelf installation and removal
