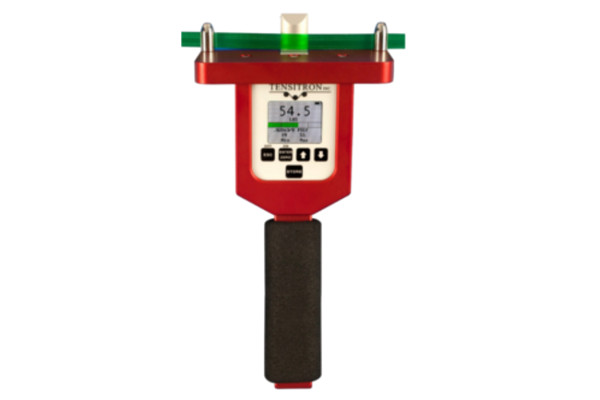

Digital Strap Tension Meter STX-1

The Model STX-1 series of Strap Tension Meters are designed to measure static tensions on metal, plastic, and other types of strapping and tie-downs. Indicate tensions in Lbs, daN or KG in these materials with tensions from 5 lbs to 2,000 lbs. The Model STX-1 series offers users utmost accuracy over a wide variety of materials.

  • Large, easy to read backlit, color display with adjustable backlighting.
  • Display shows tension, name of material selected, minimum and maximum tension values, dynamic color bar graph indicating changing tensions and battery charge level
  • Select tension values to display in Lbs., daN or KG
  • Up to 10 additional custom calibrations may be programmed into the instrument
  • Extremely accurate custom calibration procedure employing up to a 10-point multilinearization procedure.
  • All calibrations are password protected
  • Adjustable LCD refresh rates allowing for stable, digital readouts
  • Automatic shutoff after several minutes of non-use
  • Instruments may be operated continuously while connected to power supply
