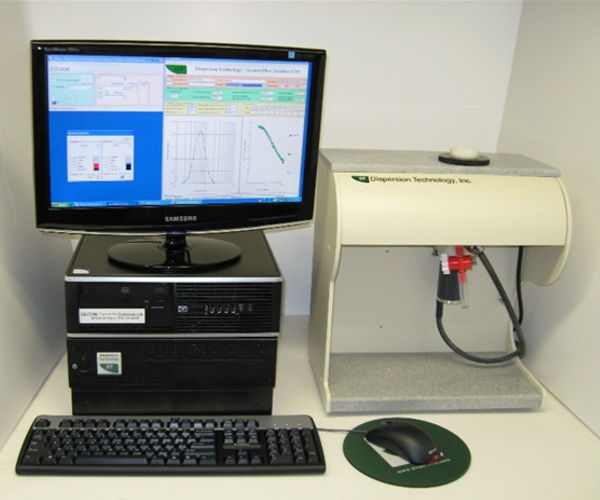

DT-100 Acoustic Spectrometer for Particle Sizing

The DT100 measures sound attenuation and velocity of any fluid like material, from water to toothpaste. No sample information is required to measure the attenuation and sound speed. A variable gap technique eliminates any need for calibration.

The pulse technique, which automatically adjust the accumulated number of pulses to reach a target signal-to-noise ratio, provides the extremely large dynamic range needed to characterize samples over a wide range of particle size and concentrations.

Particle Size Range 0.005µm to 1000µm
Measurement Time 1-10 minutes
Sample Volume 15-70ml
Volume Fraction (%) 0.1 - 50
